Rectangle Size Rocker Switch

WEIPENG® is a leading China Rectangle Size Rocker Switch manufacturers, suppliers and exporter.

Rectangle Size Rocker Switch

Tongda Wire Electric Rectangle Size Rocker Switch Introduction

Rectangle Size Rocker Switch is also known as waveform switch, stick switch, rocker switch, IO switch, power switch, because it looks like a boat, so called boat switch, its structure and toggle switch is roughly the same, only the knob is changed into a boat.

Tongda Wire Electric Rectangle Size Rocker Switch Switch Technical Characteristics

ITEMTechnical parameterValue
1Contact  Resistance≤50mΩ(Initial value)
2Insulation Resistance≥100MΩ(500VDC)
3Dielectric Voltagebetween non-connected terminals1500V/0.5mA/60S
between terminals and the metal frame3000V/0.5mA/60S
4Electrical Life≥10000 cycles
5Mechanical Life≥100000 cycles
6Operating Temperature0～125℃
7Operating Frequencyelectrical:15 cyclesMechanical:60 cycles
8Vibration ProofVibration Frequency：10～55HZ；Amplitude：1.5mm;Three directions:1H

Tongda Wire Electric Rectangle Size Rocker Switch Feature And Application

These items belong to the category of small household appliances and other electronic products. They comprise of water dispensers, treadmills, printers, televisions, computer speakers, battery-operated cars and motorcycles, ion TVs, coffee makers, plugs, massage machines, electric fans, electric oil heaters, and several others.

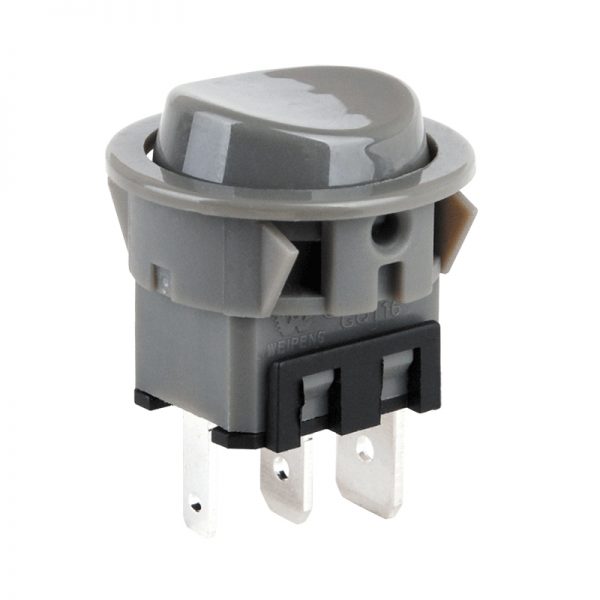

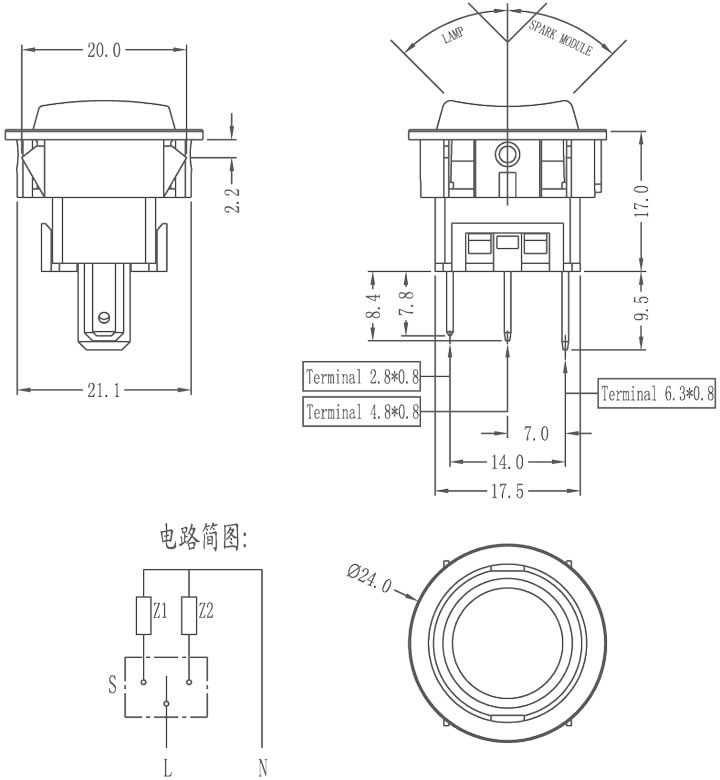

Tongda Wire Electric Rectangle Size Rocker Switch Details
