1.Production Introduction of Breathing Machine PCB

Medical boards are widely used in medical devices, especially in the electronic development trend of medical devices. In the global fight against COVID-19 situation, medical devices such as breathing machine  play a key role. Many countries will continue invest medical devices in future and Breathing Machine PCB will be in large demanding.

The main characteristics of the medical board are high reliability requirements, high product stability, relatively simple processes. The Breathing Machine PCB manufacture must have the ISO13485 medical device product certification qualification.

2.ProductParameter (Specification)

There are many types of medical equipment products, and different products have many differences in the functions used. The characteristics of PCB products are diversified, and the main requirements are stable quality and high product reliability.Some key parameters of breathing PCB manufactured by our company as below:

Line width tolerance≥12mil lines width tolerance within±10%；less than12mil line width tolerance±0.5mil
Maximum layer24layer
Solder mask alignment tolerance+/-2mil

3.Product Feature And Application

There are many types of medical devices. Medical equipment can be divided into four categories: high-value medical consumables, low-value medical consumables, medical equipment, and IVD (in vitro diagnostics).Breathing Machine PCBs are mainly used in medical equipment and in vitro diagnostic products. Medical equipment includes diagnostic equipment and treatment equipment. At present, the Breathing Machine PCB processed by our company is mainly used in blood glucose meters, breathing machine s and other equipment.

4.Product Details

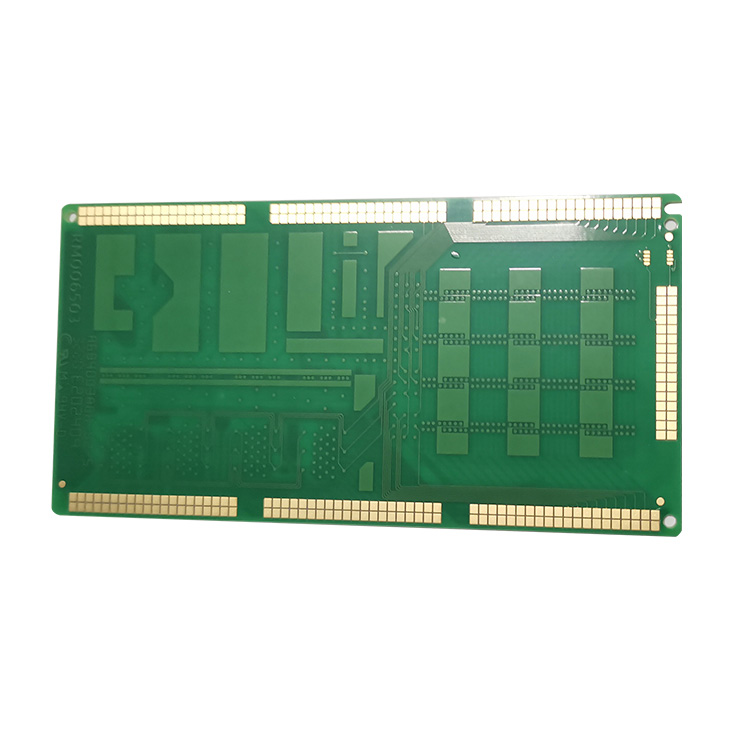

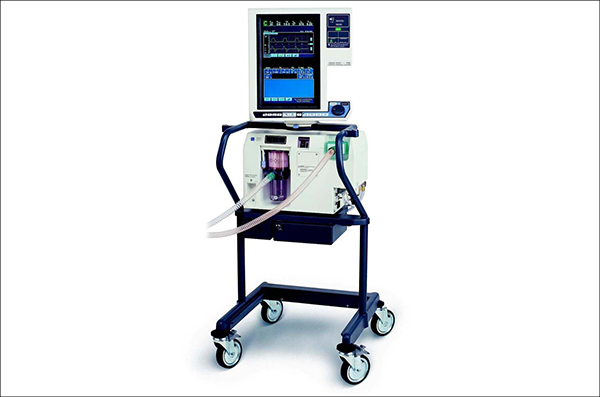

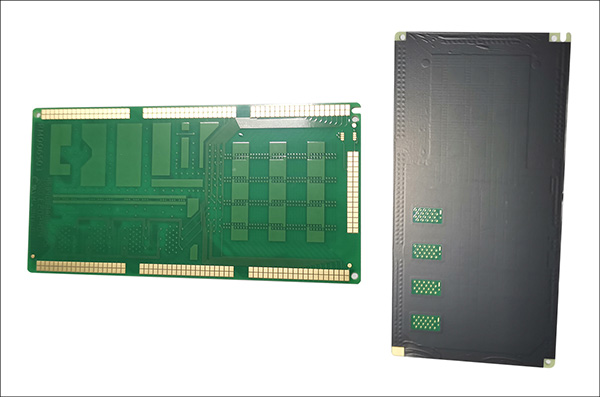

Refer to the attached picture, the Breathing Machine PCB products produced by our company include blood glucose meters and breathing machine.

5.Product Qualification

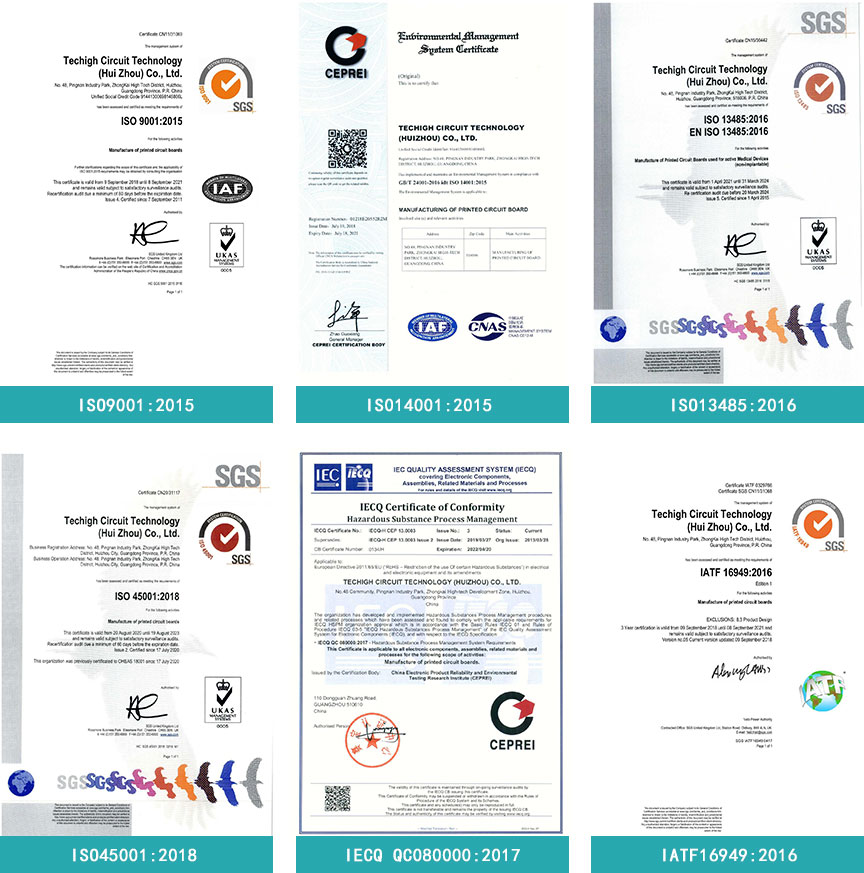

Our company has complete quality management system, currently we have certifications as follows:

We built the whole production processes Breathing Machine PCB in our own factory, we have VCP (vertical continuous plating) line, vacuum etching line, other advanced production equipment, we also have testing equipment, such as linewidth analyzer, impedance tester, TMA/DSC/TGA thermal analysis equipment, CAF test box, TCT thermal cycle test, etc. to meet the high reliability requirements of medical products.

Our company has more than 20 professional technical research and development team, the main technical leader has 10 years R&D working experience in head PCB technology company, we will continue to research all kinds of medical devices technology, followed by medical devices industry development trend, meet various new requirements from our customers.

6.Deliver,Shipping And Serving

Our company has excellent customer service system, pre-sales and after-sales responding fast, EQ confirmation within 24 hours, technical support, production are running 7 days a week and 24 hours a day.

To provide a quick sample, provide competitive production delivery, based on customer special requirements, we internal set up a green channel to meet customer special requirements.

7.FAQ

Q：Are you a trading company or a manufacturer?

A：We are a professional PCB manufacturer with 24 years of PCB manufacturing experience

Q：If OEM is acceptable?

A：Acceptable, our company is a professional OEM manufacturer, providing professional OEM services for customers' electronic products.

Q：Where is your factory located?

A：Our factory located inNo. 48, Pingnan industrial park, Zhongkai hi-tech development zone, Huizhou City, Guangdong Province, China.

Q：Do you provide sample? Free or charge?

A：We can offer samples, tend to make samples first before mass production, within the scope of a certain number, the samples are free.

Q：How long is your delivery time?

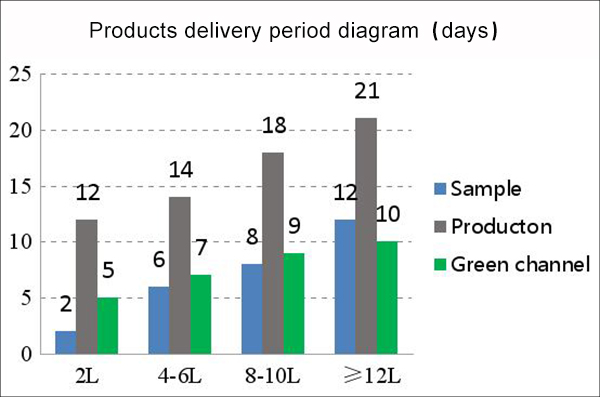

A：Depending on the design of the product, there are different delivery periods. Generally, the 4L board samples are delivered within 6 days, and a special green channel is set up to guarantee the special delivery needs of customers.

Q：What test equipment do you have specially for Breathing Machine PCB？

A：We have impedance tester, TMA\DSC/TGA thermal analysis equipment, CAF test box, TCT thermal cycle tester to meet high reliability requirements.

Q：What special filed are your Breathing Machine PCB used in?

A：The medical devices currently processed by our company are mainly used in blood glucose meters, breathing machine and other products. Our company has ISO13485 certification and we can manufacture PCBs for other medical fields.
